The VLX 500 is a high-performance aluminum sliding window built for homeowners in Boynton Beach who want the durability of aluminum without the chunky sightlines that older metal windows were known for. It combines a slim 1.97-inch profile with smooth-gliding track operation, and it’s available in both 2-track and 3-track configurations so you can match the window to your opening, your view, and how much air you want moving through the room. TruePane Windows & Doors is an authorized ViewLux installation partner serving Boynton Beach and the surrounding coastal communities, which means you’re getting the product and the install from one accountable team. Call (561) 708-6771 to schedule a free measurement and project quote.

Call (561) 708-6771

Product Overview - VLX 500 Sliding Window

The VLX 500 was engineered around a simple idea: a sliding window should give you the widest possible glass area and the least possible frame in the way. The profile width measures just 1.97 inches, which reads as a clean, modern line from inside the home and from the street. The wall thickness of the aluminum extrusion is 0.079 inches, which gives the frame the structural rigidity to resist flexing under wind load while keeping the overall window weight manageable for daily operation.

In Boynton Beach, this window series shows up in a lot of different architectural settings. It works on mid-century ranch homes where horizontal sightlines are part of the design language, on new coastal-modern builds where the goal is floor-to-ceiling glass, and on condo remodels where wall openings have fixed dimensions and the 2-track or 3-track configuration options give you flexibility within those constraints. The track system itself is the defining feature here. The sashes ride on smooth-bearing rollers that make the panels feel almost weightless when you slide them, even on wider units that carry substantial glass weight.

Buyers choose the VLX 500 over vinyl alternatives primarily for three reasons. First, aluminum holds its finish and shape through years of Florida sun exposure without the expansion-and-contraction movement that eventually compromises vinyl frame joints. Second, the slender frame profile means more visible glass and more natural light per opening. Third, the 3-track option lets you open roughly two-thirds of the window width to airflow, which matters in a climate like Boynton Beach where cross-ventilation is a big part of reducing cooling loads in spring and fall.

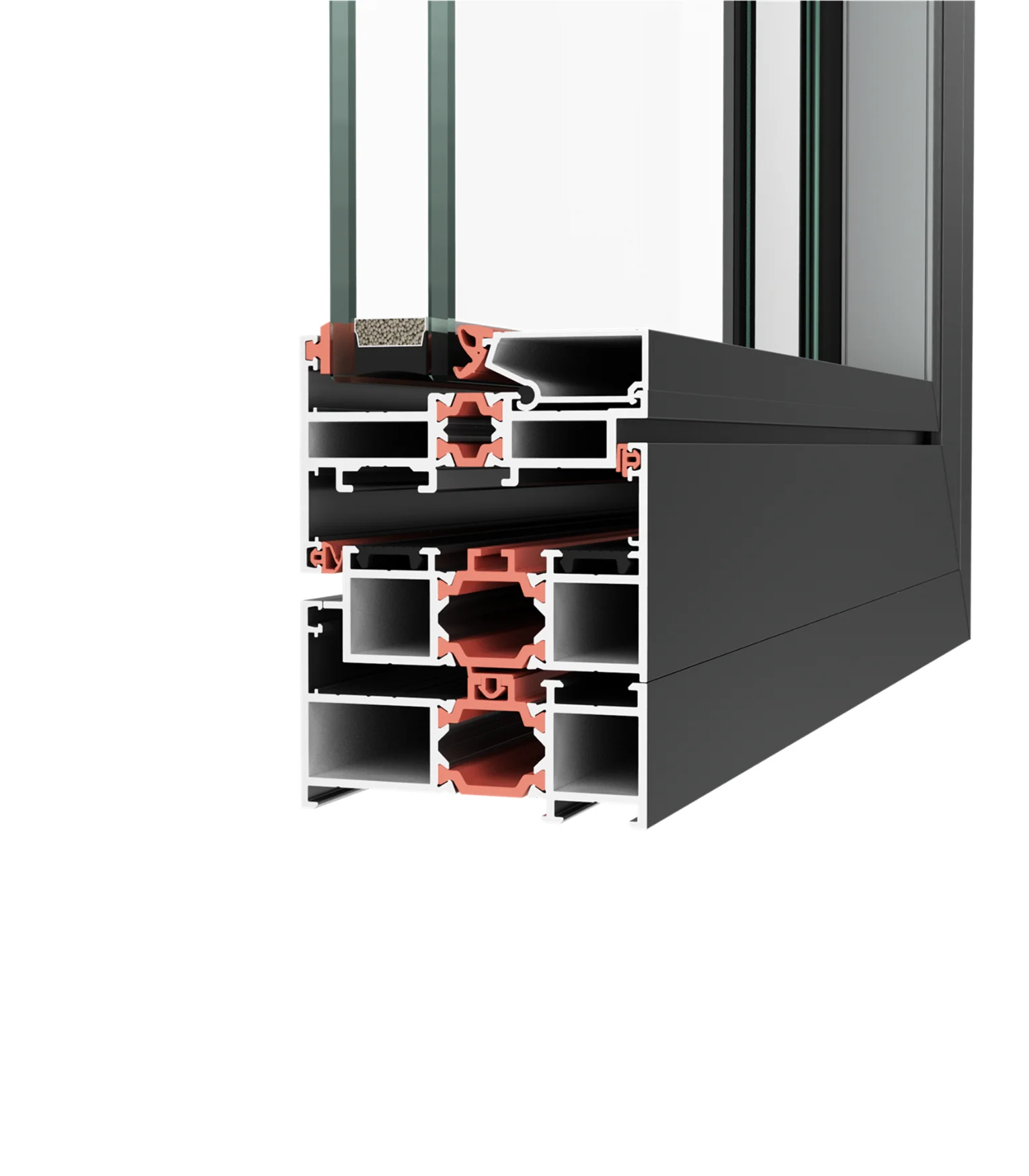

The materials package is straightforward: extruded aluminum frame members with a thermal break separating interior and exterior metal, powder-coated finishes that resist chalking and fading, and stainless steel roller hardware that does not corrode in salt-humid air. TruePane Windows & Doors has installed this series in communities throughout Boynton Beach, from the neighborhoods around Knuth Road to the waterfront enclaves off Federal Highway, and the installation feedback is what you’d expect: a window that slides as easily on year five as it does on day one.

Technical Specifications

The VLX 500’s specs tell the story of a window built for the Florida coast. Here’s what TruePane Windows & Doors orders, installs, and backs with our workmanship warranty in Boynton Beach:

• Frame profile width: 1.97 inches, measured across the assembled frame face. This is a slim-profile aluminum system designed to maximize glass area while keeping the structural cross-section stiff enough for large openings.
• Aluminum wall thickness: 0.079 inches on the primary extruded frame members, which delivers better resistance to racking and bowing than thinner residential extrusions.
• Track configurations: 2-track and 3-track. The 2-track runs two sashes in tandem for a classic sliding layout. The 3-track runs three panels so you can open a wider span of the window to airflow.
• Glass options: Clear, frosted, Low-E, tempered, and laminated. Laminated glass can be supplied as an impact-resistant package for wind-load and impact requirements.
• Finish options: Premium Black, Pure White, Anodized Silver, Bronze, Champagne, and Teak Wood. All finishes are applied by the manufacturer and covered under the product warranty.
• Screen options: Retractable screen or sliding screen, both fitted to the track system so they stay aligned and operate without binding.
• Performance ratings: NFRC-rated thermal performance via thermal break construction, AAMA 2400/2410 installation standard compliance, and AAMA 812 low-expansion foam sealant compatibility on all perimeter joints.

Performance Features

Thermal Efficiency - The VLX 500 uses a thermal break between the interior and exterior aluminum faces, which interrupts heat transfer through the frame. Combined with Low-E glass, this gives the assembly NFRC-rated thermal performance that keeps a Boynton Beach air-conditioned interior from fighting the outside heat through the window frame. Less heat gain means a lower cooling bill and a more even room temperature.

Acoustic Performance - Aluminum is dense, and a well-fitted aluminum frame seals tightly against the sash, which helps cut exterior noise transfer. Laminated glass adds a further noise reduction layer. For Boynton Beach homes near Federal Highway, I-95, or the train line, this makes a measurable difference in how a bedroom or home office feels at rush hour.

Airtightness & Weather Seal - The VLX 500 is engineered for airtightness at the sash-to-frame interface using continuous weatherstripping along the meet rails and perimeter. That matters in South Florida’s summer humidity, where a leaky window frame pulls moist outside air into the home and forces the AC to work harder. TruePane Windows & Doors installs every unit per AAMA 2400/2410, which governs proper plumb, level, and weatherseal installation.

Waterproofing - The window’s sill and track design channels water away from the interior, with weep holes that drain the track to the exterior. During installation, TruePane Windows & Doors uses AAMA 812 low-expansion foam sealant around every perimeter joint, which seals the window opening against wind-driven rain, a real concern in Boynton Beach afternoon storm cells.

Wind Resistance - The 0.079-inch wall thickness and stiff frame cross-section give the VLX 500 the structural backbone to meet wind-load ratings required for coastal construction in Palm Beach County. The impact-resistant laminated glass option brings the assembly up to code for homes in wind-borne debris zones, and TruePane Windows & Doors can coordinate the proper product configuration for your specific permit requirements.

Security & Hardware - Stainless steel rollers and a positive-locking sash latch are standard. The locking mechanism secures the meeting rail so the window can’t be jimmied open from outside, and the aluminum frame accepts reinforced strike plates for added resistance. The retractable screen option also locks into place, so it stays put in coastal breezes.

Color & Glass Options

The VLX 500 comes in six finishes, and the right choice usually comes down to the style of the home and the surrounding materials. Premium Black is the most requested finish in Boynton Beach right now, especially on coastal-modern homes and white stucco exteriors where the dark frame creates a crisp architectural line. Pure White stays classic on traditional Florida homes and condos. Anodized Silver has a raw-metal look that holds up beautifully in salt air and pairs with mid-century architecture. Bronze is a warmer dark finish that suits homes with earthy exterior tones. Champagne offers a light, warm metallic tone that reads more custom than standard white. Teak Wood is a wood-look finish for homeowners who want the warmth of timber sightlines without maintaining wood windows in a humid climate.

On the glass side, Clear glass is the baseline for unobstructed views. Frosted glass is a practical choice for bathrooms, side elevations facing a neighbor, or any window where privacy matters more than the view. Low-E glass is what we recommend for most Boynton Beach installations because it reflects solar heat while still letting in visible light. Tempered glass is required by code in certain locations like doors and low windows, and it breaks into small, safe pieces if impacted. Laminated glass does double duty: it is the foundation of an impact-resistant package for storm protection, and it also reduces outside noise. We can walk through the right combination for your window openings when we measure the job.

Installation by TruePane Windows & Doors in Boynton Beach

We have replaced enough windows in Boynton Beach to know that the installation is where the product either performs or fails. A premium aluminum sliding window installed out of square will bind, leak, and eventually wear out its rollers. Installed correctly, it slides with one finger for decades. That’s why TruePane Windows & Doors follows a fixed installation process on every VLX 500 project, and why we document the job from start to finish.

The process starts with a pre-install inspection. We pull the old window and inspect the rough opening for water damage, rot, or framing issues. Boynton Beach homes built in the 1970s and 1980s often have surprises hiding behind old windows, and catching them before the new window goes in is the difference between a clean install and a problem you don’t discover until the first summer storm. We also verify the structural condition of the opening, especially if the VLX 500 is going into an opening that previously held a smaller or differently configured window.

Then we set the frame. The window is installed level, plumb, and square, with shims placed at the manufacturer-specified anchor points. If the frame is not level, the track does not drain properly and water pools at the low end. If it’s not plumb, the sashes drift when you slide them. If it’s not square, the weatherstripping doesn’t seat and you get air leaks at the corners. These are basic standards, but they’re the standards that separate a professional installation from a handyman job.

Next comes the perimeter seal. TruePane Windows & Doors uses AAMA 812 low-expansion foam sealant around all four sides of the frame, over the backer rod, exactly as the AAMA 2400/2410 installation standard dictates. The low-expansion formulation matters because high-expansion foam can bow an aluminum frame. This seal is what prevents water intrusion and air infiltration at the window-to-wall interface, which is the most common failure point in window installations in coastal Boynton Beach.

Once the window is anchored and sealed, we run a water test. We hose the perimeter of the window with a controlled spray to confirm that water drains through the track weeps and out, not into the wall cavity. If anything doesn’t perform, we correct it before we finish. Then we install the interior trim, caulk the interior perimeter, and clean the glass and frame. The site is left clean, and you get a walkthrough of how the window operates, how to remove and clean the track, and how the locking mechanism works.

One thing we say on every quote: an improperly installed window voids the manufacturer’s warranty. Not a small print clause. Full void. The VLX 500’s warranty assumes the window is installed by a qualified contractor per the published installation standard, and the authorized partnership between TruePane Windows & Doors exists specifically so that the installation side of that warranty is never in question. When we install a VLX 500 in a Boynton Beach home, the installation falls under our own workmanship warranty and the product falls under the manufacturer’s terms, with no gap between the two.

Frequently Asked Questions - VLX 500 Sliding Window

Get a Quote - VLX 500 Sliding Window in Boynton Beach

If you’re researching the VLX 500 for a Boynton Beach home, the next step is a free on-site measurement and a written, line-item quote. We’ll confirm the right track configuration, glass package, and finish for your opening, and we’ll give you a fixed price before any work is scheduled. Call TruePane Windows & Doors at (561) 708-6771 to start your project.

Written by the team at TruePane Windows & Doors, authorized ViewLux installation partner serving Boynton Beach, FL and surrounding Palm Beach County communities.
