AfterVLX 80 Awning Window in Boynton Beach, FL | TruePane Windows & Doors

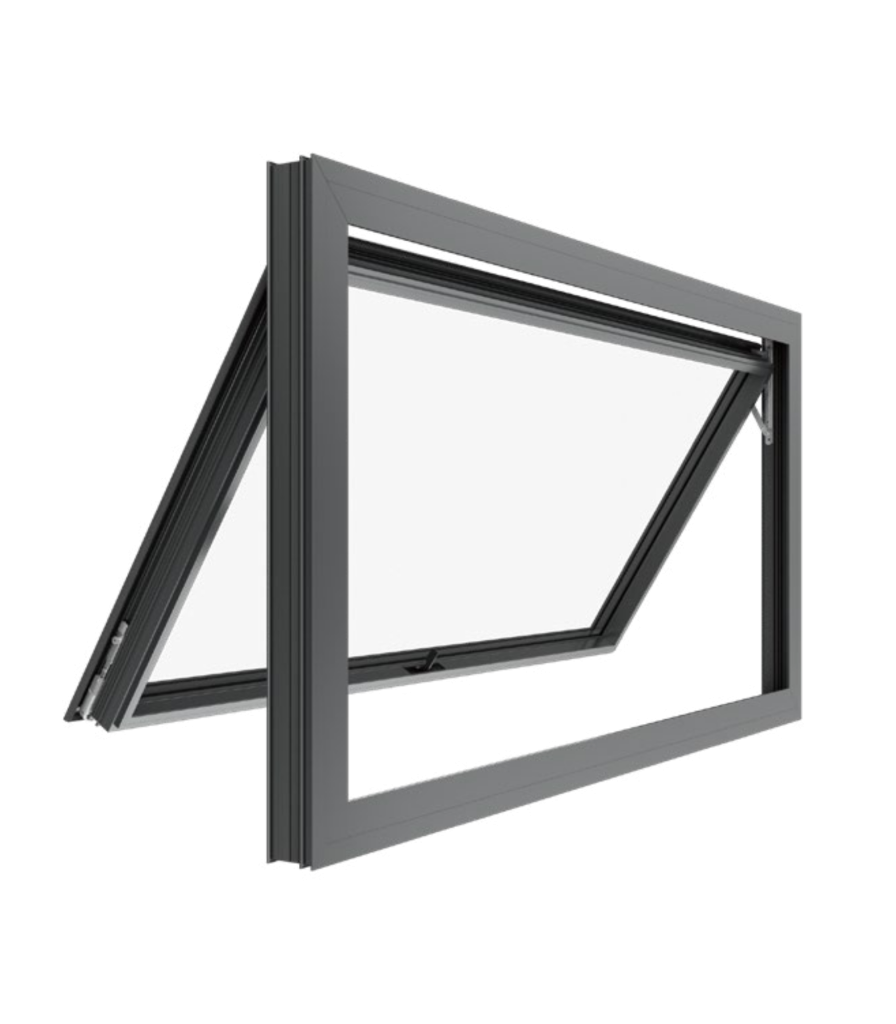

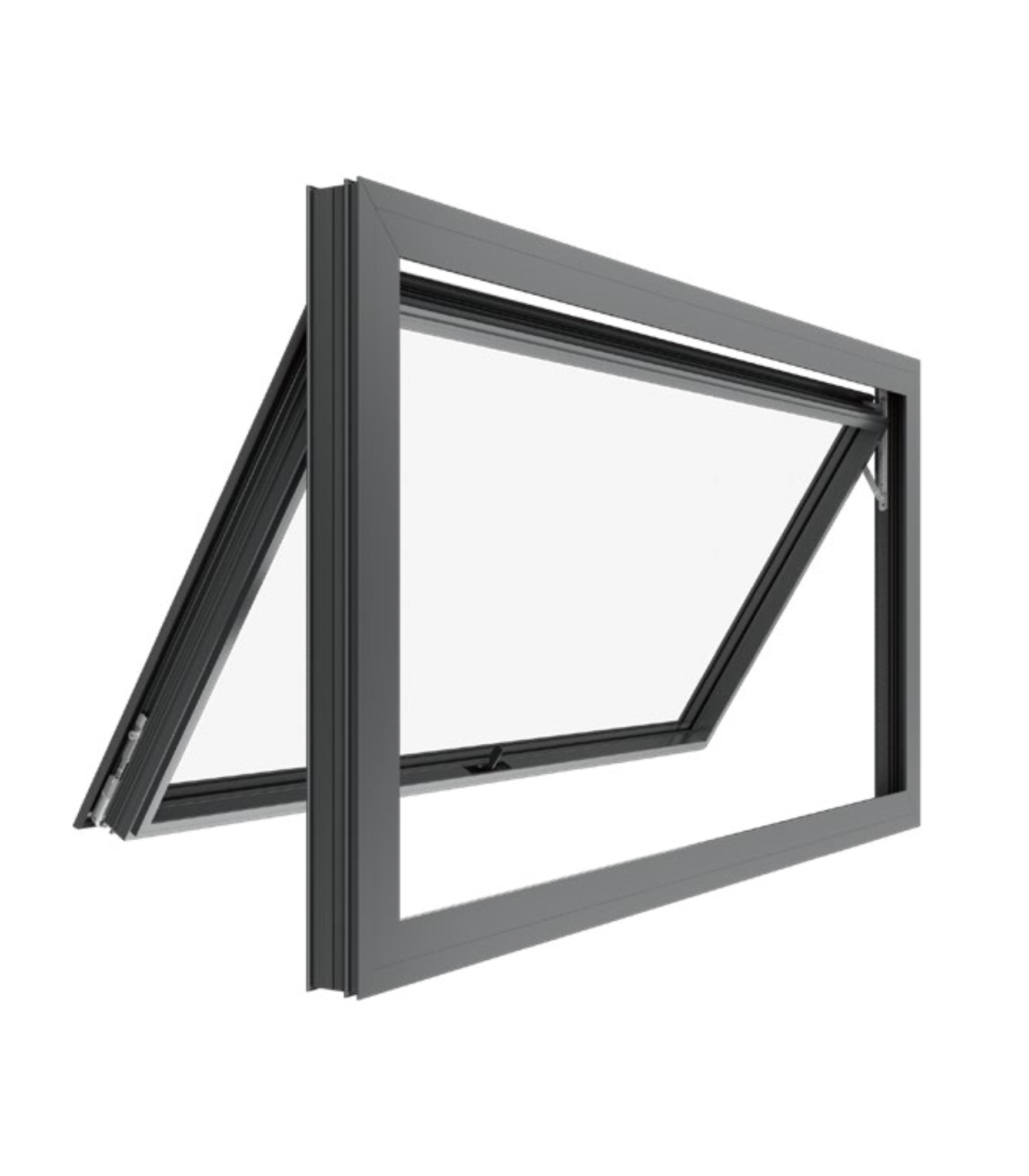

The VLX 80 Awning Window is a top-hinged aluminum window that opens outward from the bottom, letting you keep fresh air moving even during a Florida afternoon downpour. Rain hits the sloped glass and runs off while the opening stays dry. For homeowners in Boynton Beach replacing old single-pane windows or building new, this window solves the two problems that matter most here: heat gain and humidity-driven corrosion. TruePane Windows & Doors is an authorized ViewLux installation partner serving Boynton Beach and surrounding Palm Beach County communities. We sell the window, install it to AAMA standards, and stand behind the full system. Call (561) 708-6771 for pricing and a free measurement.
Product Overview - VLX 80 Awning Window
Awning windows have a simple job: bring in air without bringing in weather. The VLX 80 does it better than most because ViewLux designed it with a thermal break built into the aluminum frame. That matters in Boynton Beach, where direct sun can push a standard aluminum frame well past 120 degrees on the exterior face. The thermal break separates the inside and outside metal so heat does not conduct straight through the frame into your living room. The result is a window that stays cooler to the touch indoors and helps your air conditioner work less.

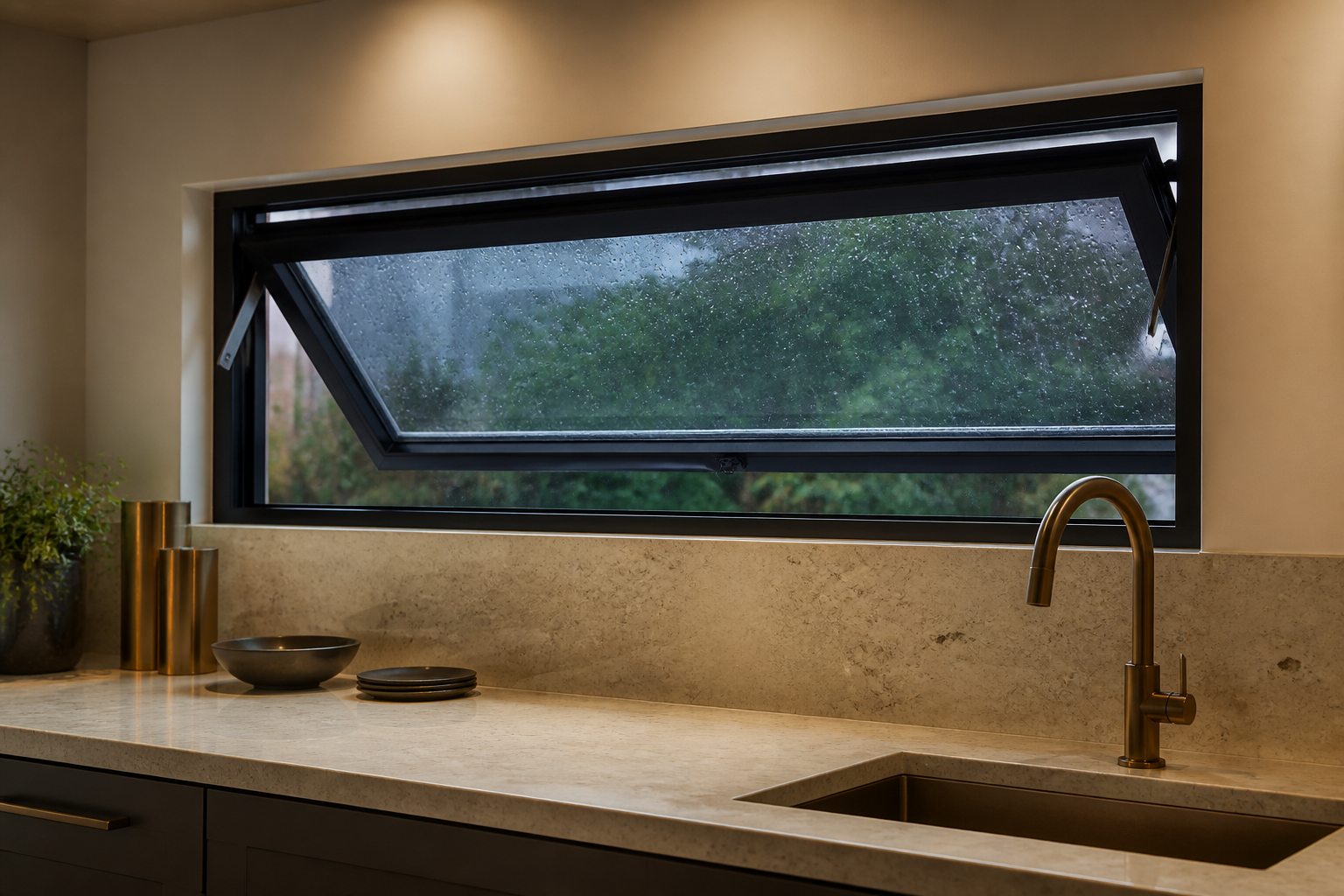

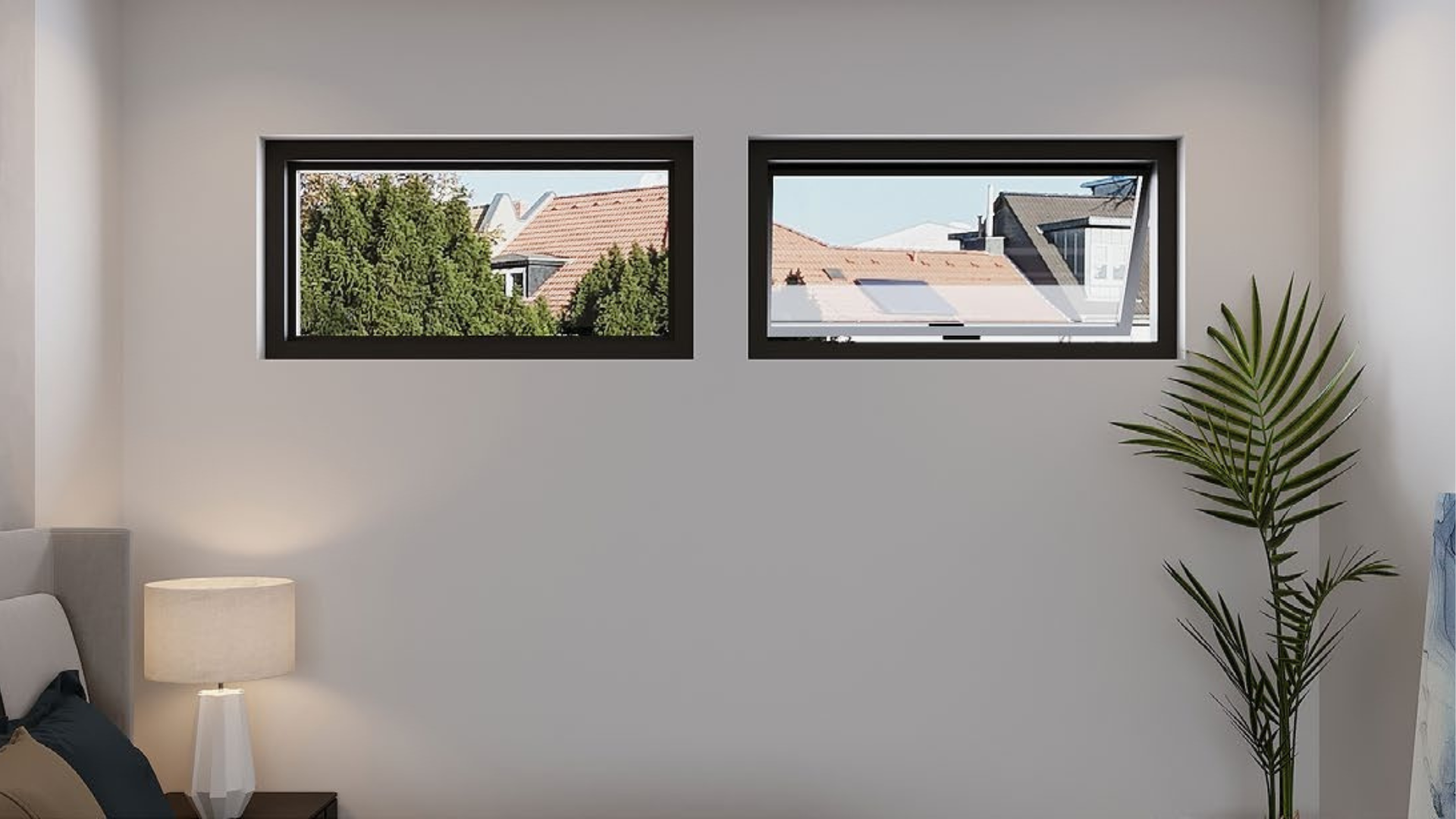

Architecturally, the VLX 80 fits where horizontal openings make sense. We install these windows above kitchen sinks, in bathrooms, along hallways, and in combination with larger fixed picture windows where a slim sightline matters. They are also common in mid-century and modern homes around Boynton Beach, where horizontal lines and clean aluminum profiles suit the original design. The 1.97-inch profile width keeps the frame visually light while the 0.079-inch wall thickness gives the extrusion real structural stiffness. Buyers choose this series when they want ventilation in the rain, a window that will not rot or warp in coastal humidity, and a product installed to spec so the warranty stays intact.
Technical Specifications
- Profile width: 1.97 inches
- Wall thickness: 0.079 inches
- Operation: Top-hinged awning, outward opening
- Frame material: Extruded aluminum with thermal break
- Glass options: Clear, Frosted, Low-E, Tempered, Laminated
- Finish options: Premium Black, Pure White, Anodized Silver, Bronze, Champagne, Teak Wood
- Screen options: Fixed Screen, Retractable Screen
- Performance standards: NFRC-rated energy performance, AAMA 2400/2410 installation compliance, AAMA 812 perimeter foaming
- Wind load: Engineered for South Florida wind requirements; impact-resistant laminated glass available
All sizing is custom per opening. TruePane Windows & Doors measures every opening in Boynton Beach before ordering, so you get a window built for your specific rough opening rather than a stock size forced into place.
Performance Features
Thermal Efficiency - The polyamide thermal break inside the aluminum frame interrupts conductive heat transfer, and the NFRC-rated energy performance puts the VLX 80 in a different class from older non-thermal aluminum windows common in Boynton Beach homes built before 1990. Low-E glass compounds the benefit by reflecting solar heat back outside.
Acoustic Performance - Laminated glass is the option to choose if you live near US-1, I-95, or the Florida East Coast Railway line through Boynton Beach. The interlayer dampens sound transmission noticeably compared to standard clear glass. Even with standard glass, the compression-sealed frame and quality weatherstripping reduce noise intrusion versus worn-out original windows.

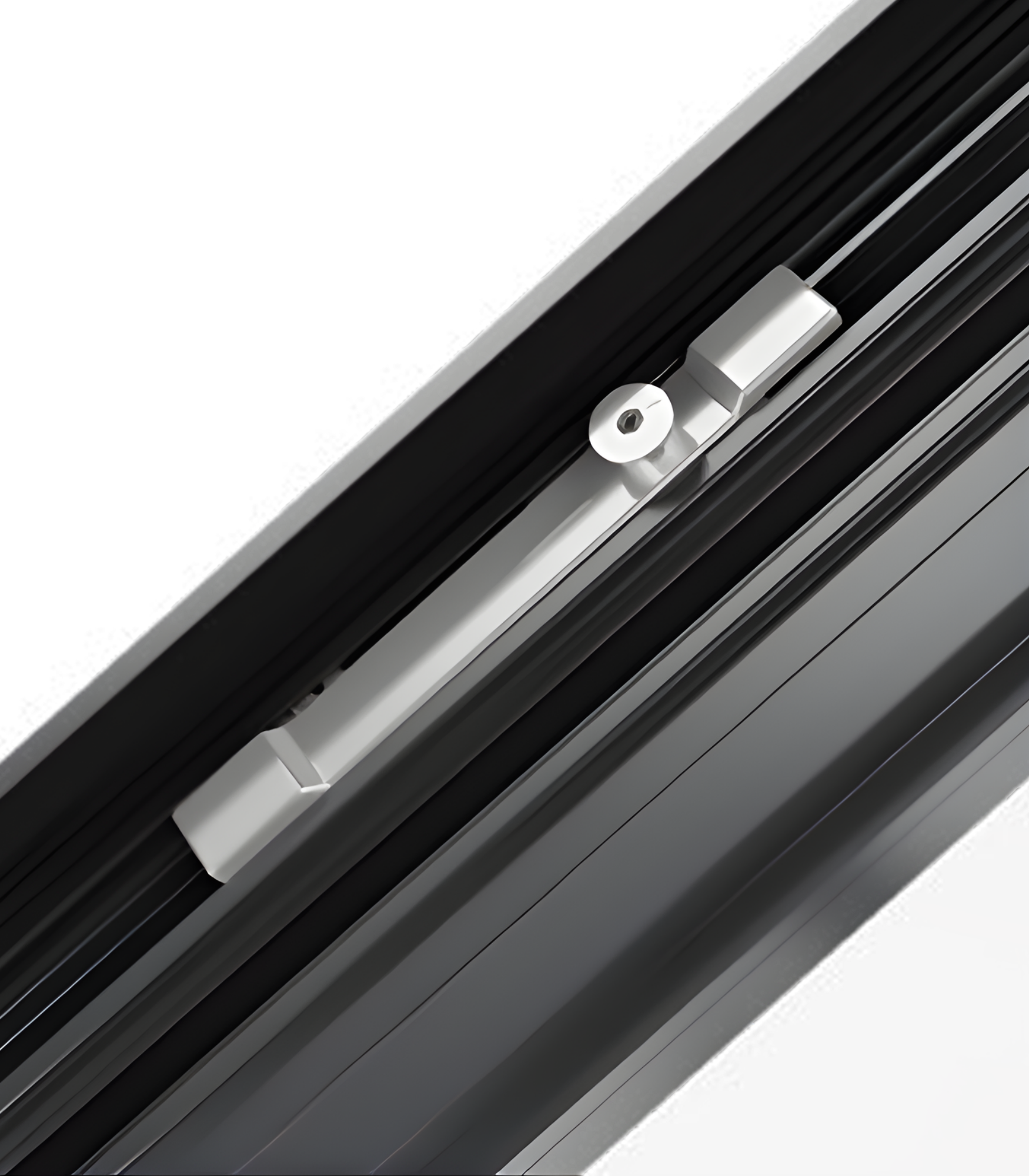

Airtightness & Weather Seal - The VLX 80 uses multi-point locking hardware that pulls the sash tight against the frame seal when closed. That mechanical compression is what creates the airtight perimeter, not just the rubber gasket alone. For Boynton Beach homes running air conditioning nine months of the year, this directly translates to lower cooling bills and less dust intrusion.
Waterproofing - Awning windows are inherently water-shedding because the sash overlaps the frame on the bottom and sides when closed. ViewLux builds drain channels into the extrusion so any water that does get past the outer seal drains to the exterior rather than pooling. Combined with an AAMA 812 foam-sealed perimeter during installation, water has no path inside.
Wind Resistance - This window is wind-load rated for local climate requirements, and impact-resistant laminated glass is available for openings that require wind-borne debris protection under Florida building code. We will tell you honestly whether your project needs impact glass based on your specific opening locations, and we will not sell it where the code does not require it.

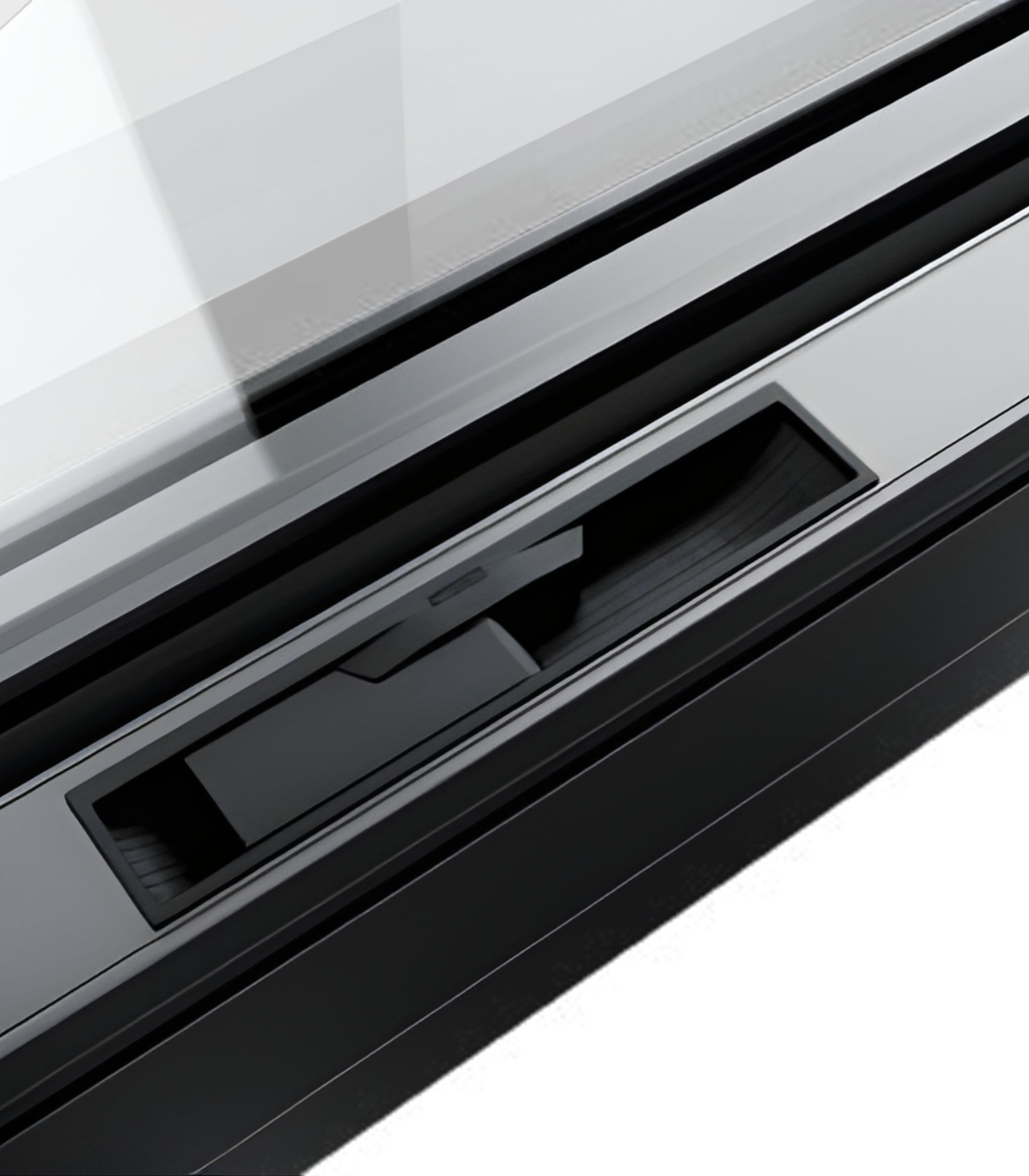

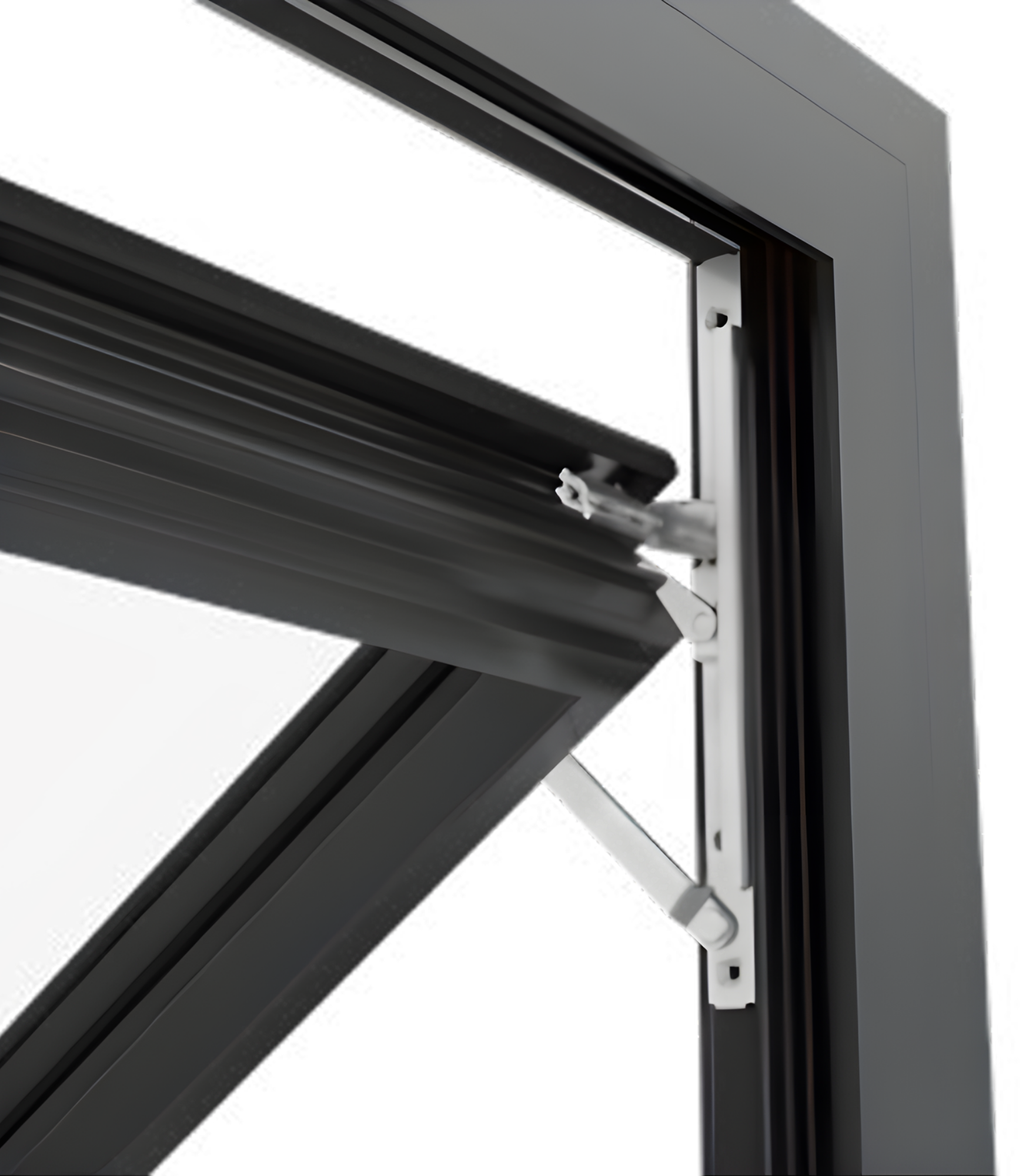

Security & Hardware - The top-hinged design means the opening is limited in travel, which makes an awning window harder to force open from outside than a horizontal slider. Stainless steel friction hinges and a robust locking mechanism keep the sash seated firmly. If you want to leave a window open for ventilation while away, this design is one of the safer choices available in Boynton Beach.
Color & Glass Options
Six finishes are available on the VLX 80. Premium Black and Pure White are the two most frequently ordered colors in Boynton Beach, particularly black for modern and contemporary homes where dark window frames create contrast against stucco or painted block. Anodized Silver is the classic aluminum look that suits mid-century and coastal-modern architecture. Bronze works well on Spanish-style and ranch homes with earthy tones. Champagne is a warmer metallic that pairs nicely with Mediterranean exteriors. Teak Wood gives you a warm, wood-look finish with the maintenance-free lifespan of aluminum, no refinishing ever.
On glass, Clear is the budget baseline. Low-E is the upgrade we recommend for any Boynton Beach home, on any orientation except fully shaded north walls. Tempered is required by code in certain locations like bathrooms and doorside openings; we will flag those during measurement. Laminated is the impact and sound-control option. Frosted is perfect for bathrooms and side yards where you want light and ventilation without giving neighbors a view inside.
Installation by TruePane Windows & Doors in Boynton Beach
Here is the uncomfortable truth about any premium window: bad installation destroys the performance no matter how good the product is. A window set out of square will leak air. A perimeter left unsealed will let water in. A frame that is not shimmed correctly will bind and eventually fail. We have seen all of it in Boynton Beach homes, usually from rushed installations or handyman work.
Our process starts with a pre-installation inspection of the rough opening. We check the substrate, look for hidden water damage, and confirm the opening dimensions before any window is ordered. On install day, we set every window level, plumb, and square, then mechanically fasten it to the structure. The entire perimeter is sealed with AAMA 812 low-expansion foam, which fills voids without bowing the frame. Then we apply a continuous exterior sealant bead and complete an interior seal. Every installation follows AAMA 2400/2410 standards, which are the recognized practice for residential window replacement.
Before we pack up, we run a water test on the exterior seal and operate the window through multiple full cycles. We clean the glass, remove all debris, and walk you through operation and maintenance. This level of care matters doubly in a coastal climate like Boynton Beach, where salt air, intense UV, and seasonal downpours punish shortcuts. It is also the only way to keep your ViewLux manufacturer warranty fully valid, since improper installation voids coverage.
Frequently Asked Questions - VLX 80 Awning Window
Typical lead time for the VLX 80 in the Boynton Beach area is 3 to 5 weeks from final measurement to delivery at our shop. Custom sizes and impact glass can add time. Call (561) 708-6771 and we will give you a current lead time based on your exact specifications.
Whether you qualify depends on the specific glass pack and the current federal and local incentive programs in effect at purchase time. Low-E glass with the right NFRC ratings often meets the efficiency thresholds required for credits or utility rebates. We can provide the NFRC performance data for your configuration so your accountant or tax professional can confirm eligibility. Call (561) 708-6771 for a quote with the glass options that maximize energy performance.
The VLX 80 carries the ViewLux manufacturer warranty on the frame, finish, hardware, and glass. TruePane Windows & Doors provides a workmanship warranty on the installation itself. The manufacturer warranty requires professional installation per AAMA standards, which is exactly what we do, so your coverage remains intact. Call (561) 708-6771 and we will walk you through exactly what is covered and for how long.
Yes. Every VLX 80 we order for Boynton Beach homes is built to the specific rough opening measurements we take on site. Awning windows are commonly made wider than they are tall, often in combination with picture windows above or below, but there are practical minimum and maximum dimensions based on hardware and wind-load limits. During your free measurement, we will tell you what sizes work best for your openings. Call (561) 708-6771 to schedule a measurement.
Clean the frames twice a year with mild soap and water, rinse thoroughly, and wipe dry. More frequent cleaning is smart if you are within a few blocks of the Intracoastal, where salt residue builds up faster. The finish is factory-applied and will not peel like paint, but salt and sand left on the surface for months can degrade any finish over time. Keep the hinge tracks free of sand and debris, and lubricate the friction hinges annually with a light silicone spray. Call (561) 708-6771 if you ever notice the sash operating harder than normal, and we will come inspect it before a small issue becomes a broken hinge.
Get a Quote - VLX 80 Awning Window in Boynton Beach
If you are replacing windows in Boynton Beach or planning a new build and want the VLX 80 done right, let us measure your openings and give you a written, line-item quote. You will know exactly what the windows cost and exactly what the installation costs, and there will be no change orders springing up later. Call (561) 708-6771 to schedule a free on-site measurement with TruePane Windows & Doors, your authorized ViewLux installation partner in Boynton Beach, FL.
Written by the team at TruePane Windows & Doors, serving Boynton Beach, FL and surrounding Palm Beach County communities with premium window and door installations.
